●溢流閥的設定壓必須高于引導閥。
●快速反應,響應時間10ms。
●在主階和引導部分之間的3號口用于遙控和卸載。
●The relief valve setting must always be set higher than the pilot valve
●Fast acting10ms response time
●Third port between main stage and pilot element used for remote control or unloading

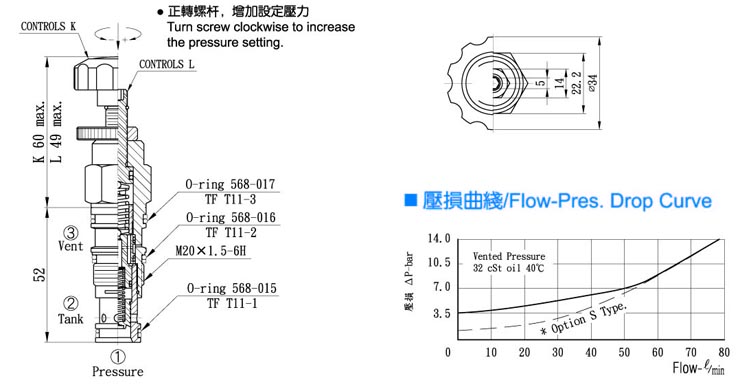

注:閥孔型號:Valve Cavity:T11
成型刀具 Cavity Tools:CT11-D.CT11-R
請參閱 Reference P101

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CRV-T11	透氣型 Vented type 引導型 Pilot operated	50ℓ/min	315bar	K:0.19Kg L:0.15Kg

CRV	T11	L	10	N
系列編號： 溢流閥- 透氣型 Series No. Relief Valves- Vented	閥孔型號 Cavity Size	調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj.	壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar. 1S-3.5 to 100 bar.(option) 2S-5 to 210 bar.(option)	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.
